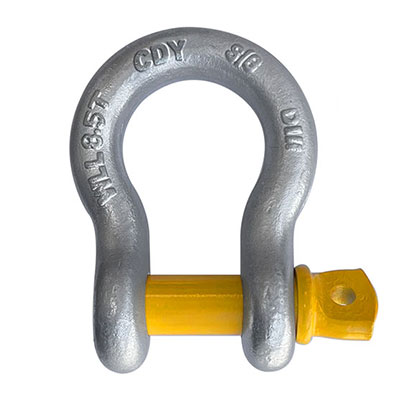

GRADE S BOW SHACKLES WITH SCREW PINS

• Screw Pin Bow Shackles
• Conforms to AS2741-2002 manufactured from Grade“S”material Complies with Federal Specification RR-C-271F Type IVA, Grade A, Class 2
• All shackles undergo a stringent quality control process using ISO9001 and batch testing.
• Maximum Proof Load is 2.2 times the working load limit. Minimum Ultimate Load is 6 times the working load limit.
• Capacities 1/3 thru 55 metric tons.

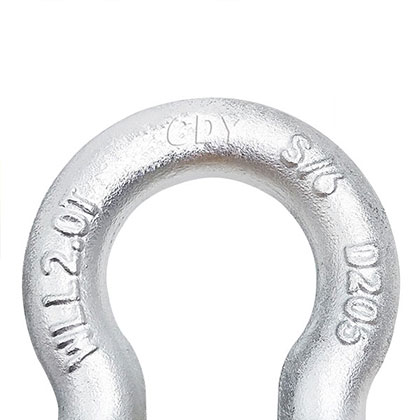

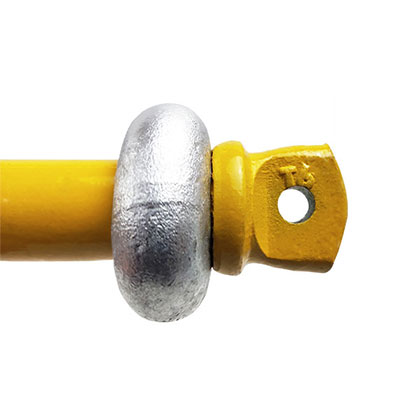

• Shackles are marked with WLL, Brand Name, Grade, Nominal Size, and Batch. Pins are marked with T6.
• All shackles are batch marked for traceability from manufacture to point of sale.
• Marked with work load limit in tonnes, quality grade, batch numbered.
• Forged - Quenched and Tempered, with alloy pins.
• Hot Dip galvanized or self colored.
• Test and mill Certificates are available upon request
